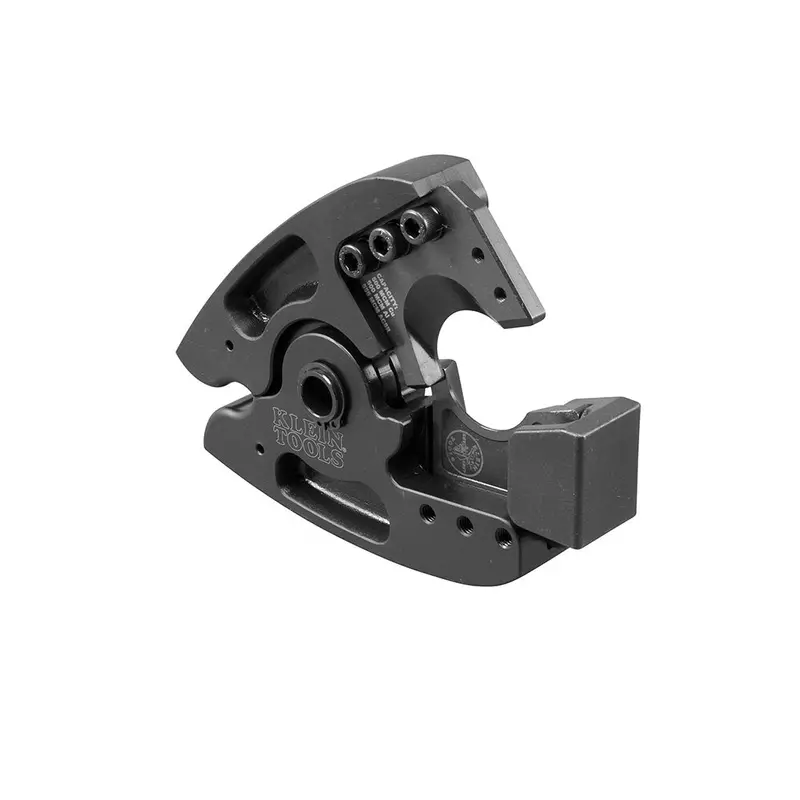

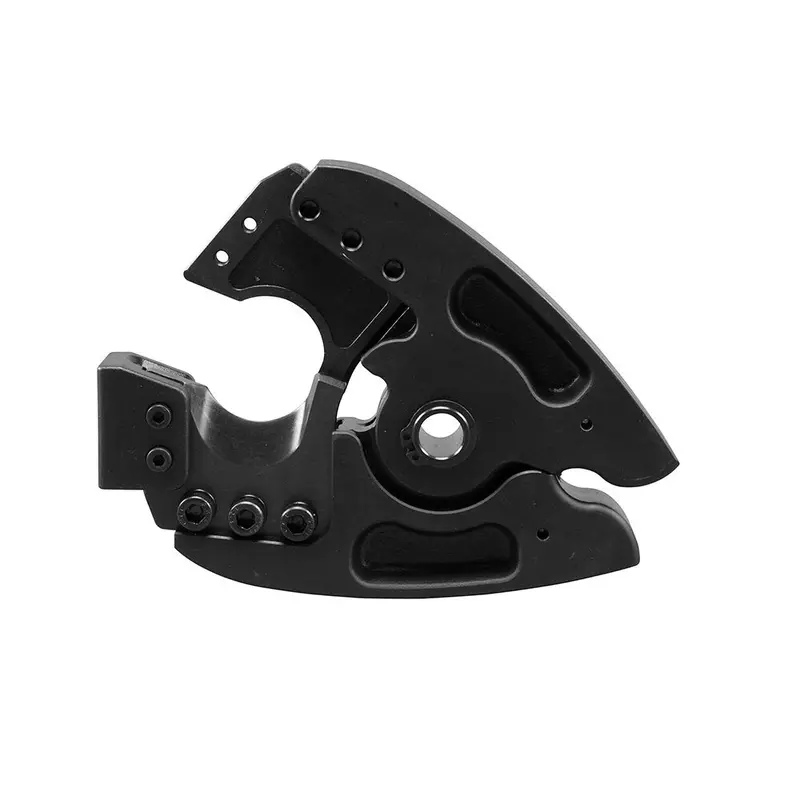

Klein BAT207T10 ACSR Cutting Jaw Assembly – Replacement Component

Description

INCLUDES:
• (1) Cutting Jaw, ACSR
FEATURES:

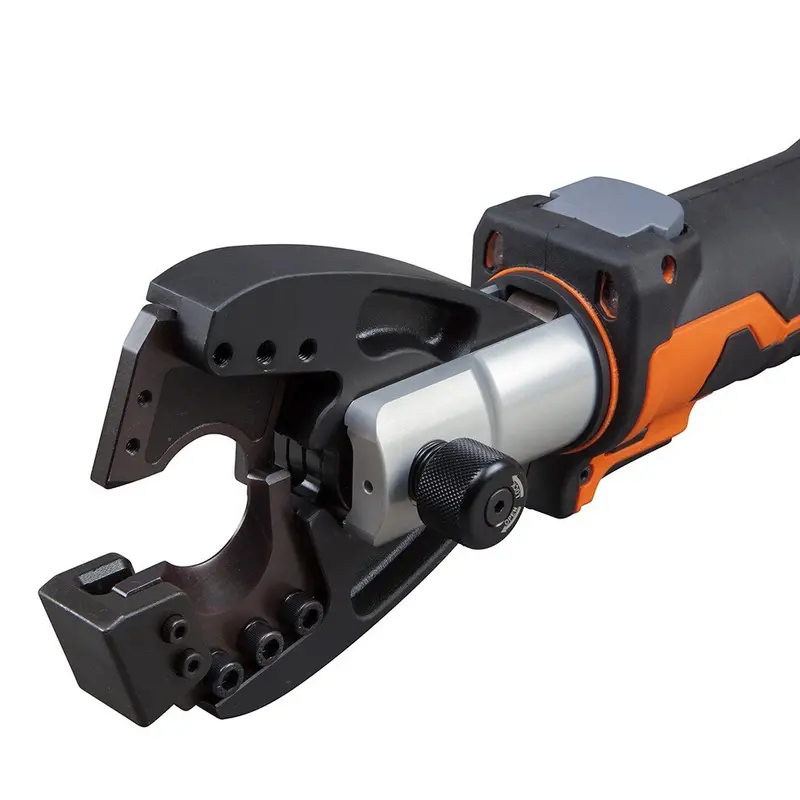

• Cutting jaw for Klein’s battery-operated cable cutter (BAT20-7T)
• Cuts copper cable up to 500 MCM
• Cuts aluminum cable up to 500 MCM
• Cuts up to 556 MCM ACSR cable
• 7 ton hydraulic force provides 15-percent more cutting power
• Replacement blades are available
• Klein brings over 160 years of expertise in hand cutting to battery-operated cutting
SPECIFICATIONS:
• Type: Replacement/Alternate Jaw
• Application: Cable Cutting
• Maximum Cable Capacity (Copper): 500 MCM
• Maximum Cable Capacity (Aluminum): 500 MCM
• Maximum Cable Capacity (ACSR): 556 MCM
• Maximum Cable Capacity (Guy Strand): —
• Bolt Maximum Capacity: —
• Overall Length: 6.25″ (158.8 mm)
• Overall Height: 6.5″ (165.1 mm)
• Overall Width: 1.5″ (38.1 mm)
• Material: ABS, PA6, GF20%, TPE
• For Use With: Cat. No. BAT207T
• Weight: 3.5 lb (1.6 kg)
Klein brings over 160 years of expertise in hand-cutting tools to battery-operated cutting tools. This cutting jaw works with Klein’s battery-operated cable cutter (BAT207T). Cuts 500 copper, 500 aluminum and 556 ACSR cable. Replacement blades available.
