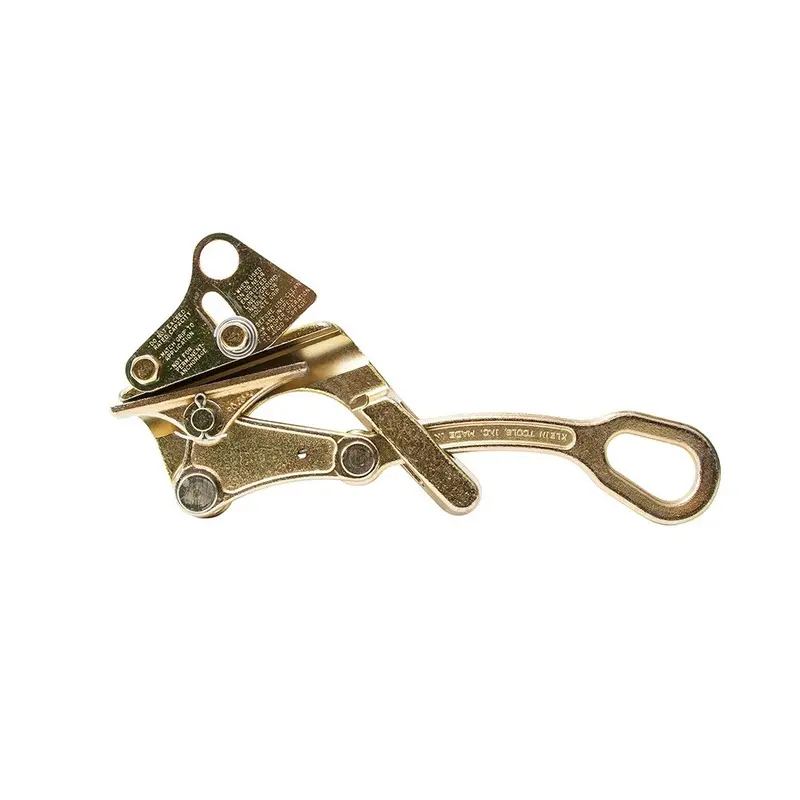

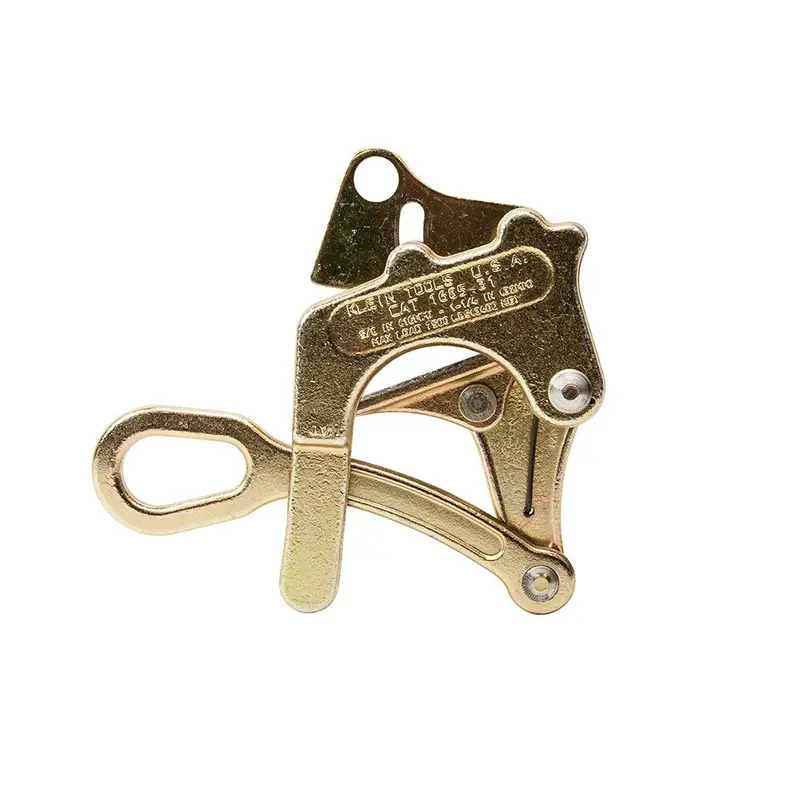

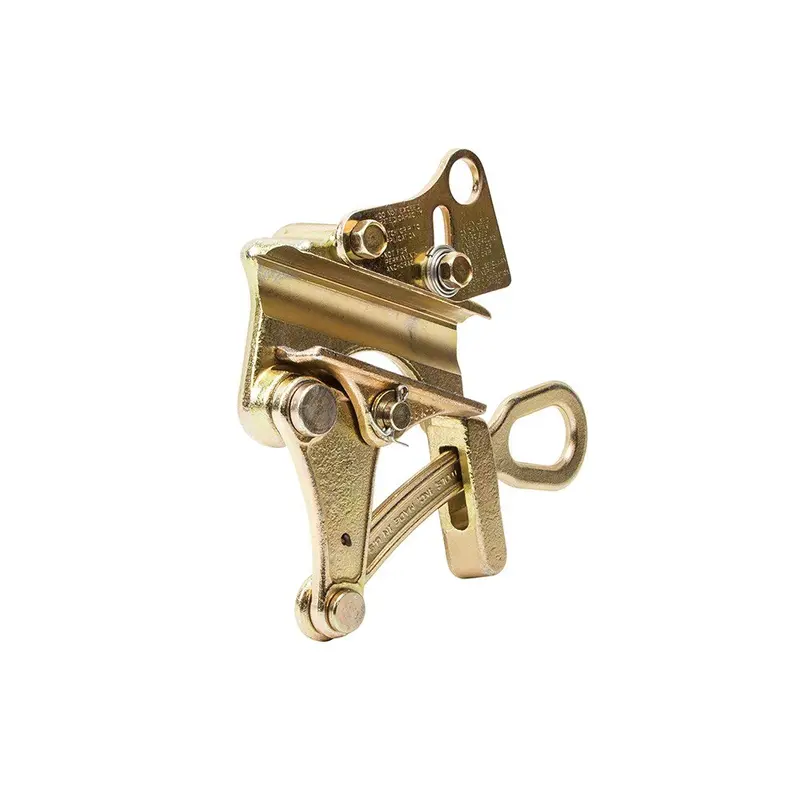

Klein HDPE Parallel Jaw Grip for Wire Up to 1.362 Inches

Description

INCLUDES:
• (1) Parallel Jaw Grip, HDPE Wire to 1.362-Inch
FEATURES:
• Securely pulls HDPE-coated cable commonly known as “tree wire”
• Innovative high-traction surface grips the cable without damaging the outer jacket
• Pulls cable diameters 0.625-Inch to 1.362-Inch (15.875 to 34.595 mm)
• Max. Safe Load: 4000-pound (1814 kg)
• Tough carbide grit technology withstands even the harshest jobsite conditions
• Spring-loaded for one-handed operation and easy placement on the conductor
• Common tree wire cable types include general cable, Hendrix® aerial systems, rite lite BLL conductor and Southwire® S2 covered cable
• Hendrix® is a registered trademark of Marmon Utility, LLC
• Southwire® is a registered trademark of Southwire Company, LLC
SPECIFICATIONS:
• Type: Parallel Jaw Grip
• Application: Wide Range Cable Pulling Grip
• Special Features: High Traction Grip Surface
• Overall Length: 12.5″ (317.5 mm)
• Overall Height: 8.5″ (215.9 mm)
• Overall Width: 2.75″ (69.9 mm)
• Material: Forged Steel
• Cable Type: HDPE-Coated
• Cable Diameter: 0.625″ to 1.362″ (15.9 to 34.6 mm)
• Jaw Length: 4.5″ (114.3 mm)
• Jaw Type: Round
• Maximum Safe Load: 4,000 lb (1,814 kg)
• Standard: OSHA
• Weight: 5.10 lb (2.31 kg)

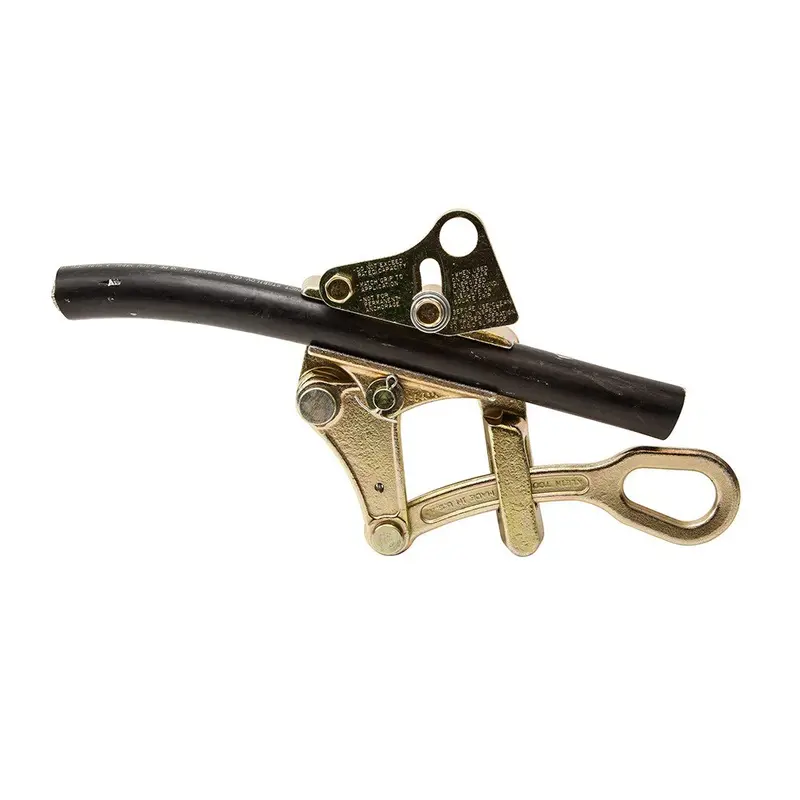

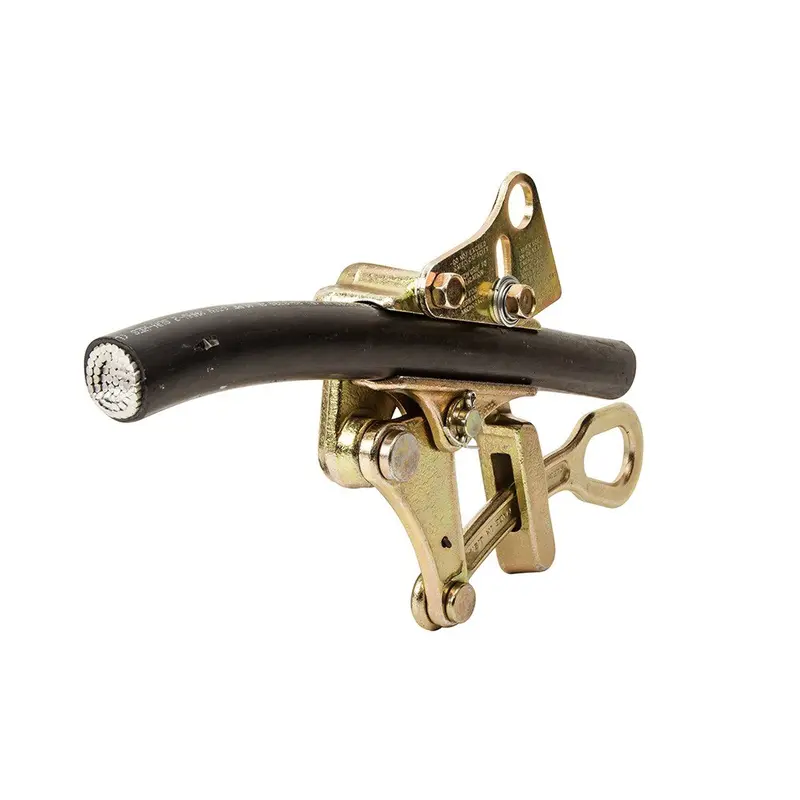

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.
